Telephone Hybrids - HY-03 - Series (Analogue)


HY-03S image




HY-03S Iso
HY-03S Front
HY-03S Rear
Iso View
Front View
Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>

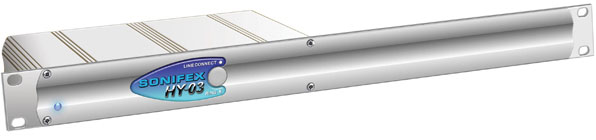

HY-03S Telephone Hybrid front view.

HY-03S Telephone Hybrid

<HY-03 logo

The HY-03S is a single automatic analogue TBU, 19" (48.3cm)
rack-mount unit.

The analogue HY-03 telephone hybrid is the replacement for the HY-02, which for many years has set the standard as an excellent value, high quality telephone hybrid.

The HY-03 retains many of the features of the HY-02 and adds some additional ones. Some of the features of the HY-03 include :

  • Fully automatic - adapts to varyingline conditions and has automatic signal limiting.
  • Local and remote line hold switching - calls can be remotely switched through a mixing console.
  • Momentary or permanent latching remotes can be enabled.
  • Balanced mic/line input - 10k ohm balanced input selectable for 0dBu clean feed line, or microphone level with adjustable gain.
  • Balanced output - 0dBu low impedance balanced output, with output gain adjustment.
  • Mixed output - the output can be a mix of the caller and mic/line input signals for recording both sides of the telephone conversation.
  • Integrated ring detector - automatic call answering after a pre-determined number of rings.
  • Fitted with K-break disconnect detection as standard with an option for dial-tone disconnect using the optional HY-03DTD board. The HY-03DTD board can be configured to disconnect on recognizing the dial tone used in a specific country.
  • Line limiter, bandpass filter and output noise gate with preset threshold providing low distortion crystal clear audio.
  • 28dB typical line balance rejection.
  • Built in power supply with switchable 115V, or 230V, mains input.
  • BABT approval compliant with European PTT specifications.

Technical Specification For HY-03S

Audio Specification

Input Impedance - Line Mode (Clean Feed): 10kΩ balanced 0dB
Input Impedance - Microphone Mode: 2kΩ balanced
Clean Feed Limiting Input: +4dBu
Microphone Level Range: From 74dB to 40dB adjusted by preset pot
Bandwidth to Telephone Line: 250Hz - 4kHz, -3dB ref 1kHz
Telephone Line Impedance: Nominally 600Ω
Telephone Line Impedance Range: 300Ω to 1500Ω
Output Impedance: 50Ω balanced floating 0dBu
Output Level Range: +8dB to -14dB adjusted by preset pot
Rejection Ratio: 45dB on 1kHz tone, typically 28dB on complex waveforms, reference peak level of 0dB
Ring Detector Sensitivity: 1 ring to 6 rings
Power: 230V 50Hz, or 115V 60Hz. 6W for HY-03.


Connections

Mic/Line Input: XLR 3 pin female with push button mic/line selection
Line Output: XLR 3 pin male
Telephone Line: RJ11 6/4 socket
Telephone Handset/Instrument: RJ11 6/4 socket
Remotes: 9-way D-type socket
Power: IEC mains (CEE22)
Each unit is supplied with 1 x RJ11 to RJ11 telephone line lead, 1 x RJ11 to BT plug telephone line lead, 1 x BT handset socket to RJ11 plug adapter, IEC mains lead fitted with moulded mains plug, handbook and warranty card.

Order Code     Description
Height
Width
Depth*
Total Nett
Weight
Total Gross Weight
HY-03S     Automatic analogue TBU, 19” rack mounted
4.5cm (1U)
1.8” (1U)
48.3cm
(19” rack width)
17.5cm
7”
1.30kg
2.9lbs
2.1kg
4.6lbs
      HY-03S boxed
6.8cm
2.7"
58.8cm
23"
27cm
10.6"

*Depth is measured from the front to the end of the connectors fitted to the back of the unit.
Note: If you are ordering the HY-03 for use in the USA, add the word “US” after the product code. If you are using the HY-03 with the Broadcast Bionics PhoneBox system, then add the word ”BB” after the product code. The HY-03 uses different circuitry for these systems.


Accessories

Order Code     Description
HY-03DTD     Dial tone detect add-on board
HY-03CON     Front panel conversion kit, HY-03S 19” (48cm) rack-mount front to HY-03 free standing
HY-03TCON     Front panel conversion kit, HY-03 or HY-03S, to HY-03T 19” (49cm) rack-mount front
HY-02EC     Eurocard version of HY-02 analogue TBU (non RoHS)
