Audio Interfaces - Redbox - Video Embedder/De-Embedder





RB-VHCMD16
RB-VHCMAD16  Iso
RB-VHCMD16 Front
RB-VHCMD16 Rear
Iso View
Front View
Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>

RM-RK3 logo

RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder 16 Channel Digital I/O.

RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder 16 Channel Digital I/O

Redbox LogoThe RB-VHCMD16 is a 16-channel de-embedder and 16 channel embedder combined into a single 19-inch rack unit. The unit can selectively de-embed any channel within any audio group of an SDI video signal, to any of the digital outputs. After which, the video becomes two independent paths where the audio groups can be selectively deleted or passed through. The unit then embeds any of the digital input channels to available groups within each of the two video paths, which are then sent to the re-clocked SDI outputs.

The de-embedding and embedding channel routing is controlled via the front panel buttons and indicators. There is also LED indication for SDI input status and audio group presence.

The unit can be remote controlled via Ethernet or serial port connections using the Sonifex SCi software.

It has a triple rate SDI receiver with automatic input rate detection and equalisation along with two re-clocked and individually buffered SDI outputs. It supports the full range of single link 3G, HD and SD standards from NTSC and PAL up to 1080p 60Hz.

Each digital input is normally sample rate converted to 48kHz before embedding, so that it is synchronous to the video input, though sample rate conversion can be bypassed on a per input basis allowing SMPTE-337M data to be embedded. All digital outputs are output at 48kHz, synchronous to the video input. There is independent level control for each digital input and output channel, which can be adjusted from -24dB to +24dB in 0.5dB steps.

The digital audio I/O connections are transformer-coupled balanced line interfaces and can be configured to be either 75ohm (AES 3ID) or 110Ω (AES 3) impedance through either a BNC or D-type connector. These connections are paralleled, allowing one type to be used per input or output.

Block Diagram

Block Diagram For RB-VHCMD16.

See larger image >

SCi logoThis product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software. To download a copy of the SCi software, please use this link >

SCi Screens


Sci image - RB-VHCMD16 general System Screen

General System Screen.

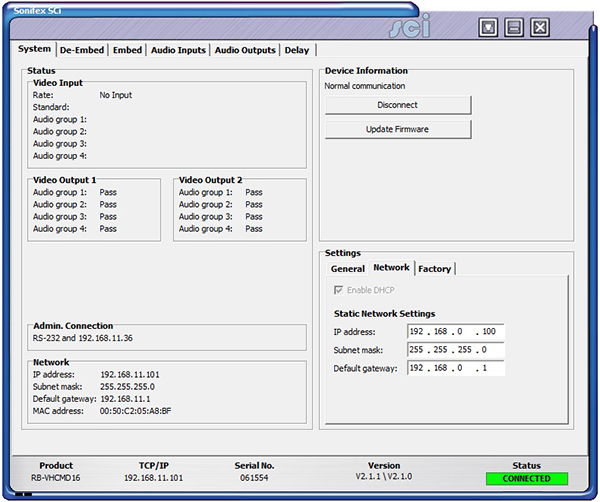

Sci image - RB-VHCMD16 System Network Screen

System Network Screen.

Sci image - RB-VHCMD16 Audio Inputs Screen

Audio Inputs Screen.

Sci image - RB-VHCMD16 Audio Outputs Screen

Audio Outputs Screen.

Sci image - RB-VHCMD16 De-Embed Screen

De-Embed Screen.

Sci image - RB-VHCMD16 Delay Screen

Delay Screen.

Sci image - RB-VHCMD16 Embed/SDI1 Screen

Embed/SDI1 Screen.

Sci image - RB-VHCMD16 Embed/SDI2 Screen

Embed/SDI2 Screen.

Technical Specification For RB-VHCMD16

Front Panel Controls & Indicators

Bank Select: Bank 1, 2, 3 or 4
Bank Channel Select: Channels 1, 2, 3 or 4
Function Select: De-embed or embed
Group Select: Groups 1, 2, 3 or 4
Group Channel Select: Group channels 1,2,3 or 4
Status: 1 x SDI input status LED
2 x SDI output LEDs
4 x Audio group status LEDs


Audio Specifications

Output Sample Rate: 48kHz
Input Sample Rates: 32-192kHz, sample rate converted to 48kHz
Input & Output Impedance: 110Ω or 75Ω (jumper selectable)
Signal Level (un-terminated): Balanced: 3Vp-p +/- 20% Unbalanced: 2Vp-p +/- 20%
Dynamic Range: 138dB
Distortion and Noise: <-137dB THD+N at 997Hz, ref 0dBFS
De-embed Delay: 3G/HD/SD: 330 us
SRC Input Delay: 192 kHz: 1.3 ms
96 kHz: 1.83 ms
48 kHz: 2.9 ms
Embed Delay: SD: 600 us + SRC Input Delay
3G/HD: 300 us + SRC Input Delay


Connections

Digital Audio Outputs: 16 outputs via 8 BNCs (S/PDIF) or D-type (AES/EBU)
Digital Audio Inputs: 16 inputs via 8 BNCs (S/PDIF) or D-type (AES/EBU)
Digital Audio Connectors: 16 x BNC 2 x 25-way D-type socket
Power Supply: Universal filtered IEC, continuously rated 85-264VAC @47-63Hz, fused, max 13W


Equipment Type

RB-VHCMD16 3G/HD/SD-SDI embedder & de- embedder 16 channel digital I/O

Common Specifications For RB-VHEMA8, RB-VHDMA8,
RB-VHCMA4 & RB-VHCMD16

SDI Specification

SDI Input: 1 x BNC, 3G/HD/SD-SDI
SDI Outputs: 2 x BNC, 3G/HD/SD-SDI, Re-clocked
Impedance: 75Ω
Output Alignment Jitter: <0.2UI (3G <0.3UI)
Output Level: 800mV +/- 10%
Return Loss: <15dB at 1500MHz
SDI Supported Standards: 270Mbps, SMPTE-259M-C (SD) 1.485 or 1.4835Gbps, SMPTE-292M (HD)
2.97 or 2.967Gbps, SMPTE-424M (3G), SMPTE 425M-A
Supported Video Formats: 525/59.94 (SMPTE-125M 625/50 (ITU-R BT.656) 720p/23.98, 24, 25, 29.97, 30, 50,
59.94, 60 (SMPTE-296M) 1035i/59.94, 60 (SMPTE-260M) 1080i/50, 59.94, 60 (SMPTE-274M) 1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M) 1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M)1080p/50 (SMPTE-295M)
Video Delay: SD: 290 pixels / 22 us
HD: 570 pixels / 8 us
3G: 570 pixels / 4 us
Embedded Audio: 48kHz, synchronous
SMPTE-272M-ABC
SMPTE-299M
Serial Port: RS232, 9 way D-type
Ethernet Port: 10/100Mbps
Fuse Rating: Anti-surge fuse 2A 20 x 5mm


Physical Specifications

Dimensions (Raw): 48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U)
19” (W) x 6.2” (D*) x 1.7” (H) (1U)
Dimensions (Boxed): 59cm (W) x 27.5cm (D) x 11cm (H)
23.2” (W) x 10.8” (D) x 4.3” (H)
Weight: Nett: 1.8kg Gross: 2.3kg
Nett: 4.0lb Gross: 5.1lb
* Note that this product is deeper than standard Redboxes
