Audio Interfaces - Redbox - Video Embedder/De-Embedder





RB-VHCMA4
RB-VHCMA4  Iso
RB-VHCMA4 Front
RB-VHCMA4 Rear
Iso View
Front View
Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>

RM-RK3 logo

RB-VHCMA4 3G/HD/SD-SDI Embedder & De-Embedder 4 Channel Analogue I/O.

RB-VHCMA4 3G/HD/SD-SDI Embedder & De-Embedder 4 Channel Analogue I/O

Redbox LogoThe RB-VHCMA4 is a 4-channel analogue de-embedder and a 4-channel analogue embedder combined into a single 19-inch rack unit. The unit can selectively de-embed up to 4 channels within any audio group of an SDI video signal, to any of the analogue outputs. After which, the video becomes two independent paths where the audio groups can be selectively deleted or passed through. The unit then embeds any of the 4 analogue input channels to available groups within each of the two video paths, which are then sent to the re-clocked SDI outputs.  The de-embedding and embedding channel routing is controlled via the front panel buttons and indicators. There is also LED indication for SDI input status and audio group presence.

The unit can be remote controlled via Ethernet or serial port connections using the Sonifex SCi software.

It has a triple rate SDI receiver with automatic input rate detection and equalisation along with two re-clocked and individually buffered SDI outputs. It supports the full range of single link 3G, SD and HD standards from NTSC and PAL up to 1080p 60Hz.

There is independent level control for each analogue input and output channel, which can be adjusted from -24dB through to +24dB in 0.5dB steps. The analogue outputs have three full-scale gain settings which can be set via jumpers situated inside the unit. Allowable settings are +12dBu, +18dBu and +24dBu reference FSD Similarly, the analogue inputs full-scale gain settings can be set via jumpers inside the unit. Allowable settings are +12dBu, +18dBu and +24dBu for FSD. The balanced and unbalanced connections are paralleled, allowing one type to be used per input or output.

Block Diagram

Block Diagram For RB-VHCMA4.

See larger image >

SCi logoThis product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software. To download a copy of the SCi software, please use this link >

SCi Screens


Sci image - RB-VHCMA4 General System Screen

General System Screen.

Sci image - RB-VHCMA4 System Network Screen

System Network Screen.

Sci image - RB-VHCMA4 Audio Inputs Screen

Audio Inputs Screen.

Sci image - RB-VHCMA4 Audio Outputs Screen

Audio Outputs Screen.

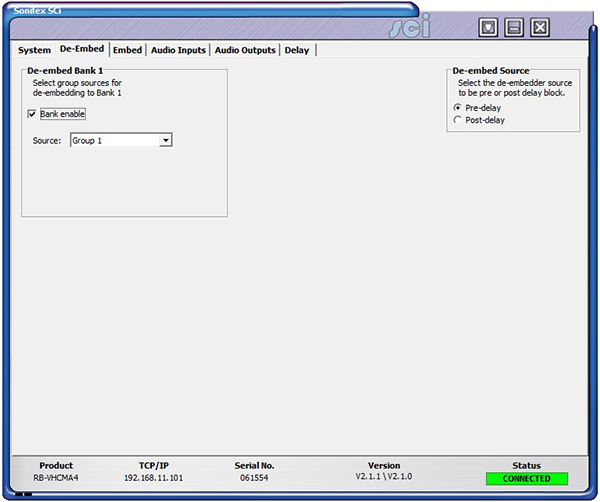

Sci image - RB-VHCMA4 De-Embed Screen

De-Embed Screen.

Sci image - RB-VHCMA4 Delay Screen

Delay Screen.

Sci image - RB-VHCMA4 Embed Screen

Embed/SDI1 Screen.

Sci image - RB-VHCMA4

Embed/SDI2 Screen.

Technical Specification For RB-VHCMA4

Front Panel Controls & Indicators

Bank Select: De-embed bank or embed bank
Bank Channel Select: Channels 1, 2, 3 or 4
Group Select: Groups 1, 2, 3 or 4
Group Channel Select: Group channels 1,2,3 or 4
Status: 1 x SDI input status LED
2 x SDI output LEDs
4 x Audio group status LEDs


Audio Specifications

Analogue Inputs

Maximum Input Level: +27dBu (balanced)
Input Impedance: >10kΩ bridging (balanced)
Input Levels: +12dBu, +18dBu or +24dBu for FSD (jumper selectable)
Signal to Noise: Better than -113dBFS (RMS A-weighted at 24-bit, balanced)
Distortion and Impedance: Better than -100dB THD+N at 1kHz (balanced)

Analogue Outputs
Max Output Level: +24dBu (balanced)
Output Impedance: <50Ω (balanced)
Gain Range: 12dBu, 18dBu or 24dBu ref FSD (jumper selectable)
Signal to Noise: Better than -106dB (RMS A-weighted at 24-bit, balanced)
Distortion and Noise: Better than -85dB THD+N at 1kHz (balanced)
De-embed Delay: 3G/HD/SD: 1.1 ms
Embed Delay: SD: 600 us
3G/HD: 300 us


Connections

Analogue Audio Inputs: 4 input channels via BNC (unbalanced) or D-type (balanced)
Analogue Audio Outputs: 4 output channels via BNC (unbalanced or D-type (balanced)
Analogue Audio Connectors: 8 x BNC
2 x 25-way D-type
Power Supply: Universal filtered IEC, continuously rated 85-264VAC @47-63Hz, fused, max 16W


Equipment Type

RB-VHCMA4 3G/HD/SD-SDI embedder & de- embedder, 4 channel analogue I/O

Common Specifications For RB-VHEMA8, RB-VHDMA8,
RB-VHCMA4 & RB-VHCMD16

SDI Specification

SDI Input: 1 x BNC, 3G/HD/SD-SDI
SDI Outputs: 2 x BNC, 3G/HD/SD-SDI, Re-clocked
Impedance: 75Ω
Output Alignment Jitter: <0.2UI (3G <0.3UI)
Output Level: 800mV +/- 10%
Return Loss: <15dB at 1500MHz
SDI Supported Standards: 270Mbps, SMPTE-259M-C (SD) 1.485 or 1.4835Gbps, SMPTE-292M (HD)
2.97 or 2.967Gbps, SMPTE-424M (3G), SMPTE 425M-A
Supported Video Formats: 525/59.94 (SMPTE-125M 625/50 (ITU-R BT.656) 720p/23.98, 24, 25, 29.97, 30, 50,
59.94, 60 (SMPTE-296M) 1035i/59.94, 60 (SMPTE-260M) 1080i/50, 59.94, 60 (SMPTE-274M) 1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M) 1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M)1080p/50 (SMPTE-295M)
Video Delay: SD: 290 pixels / 22 us
HD: 570 pixels / 8 us
3G: 570 pixels / 4 us
Embedded Audio: 48kHz, synchronous
SMPTE-272M-ABC
SMPTE-299M
Serial Port: RS232, 9 way D-type
Ethernet Port: 10/100Mbps
Fuse Rating: Anti-surge fuse 2A 20 x 5mm


Physical Specifications

Dimensions (Raw): 48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U)
19” (W) x 6.2” (D*) x 1.7” (H) (1U)
Dimensions (Boxed): 59cm (W) x 27.5cm (D) x 11cm (H)
23.2” (W) x 10.8” (D) x 4.3” (H)
Weight: Nett: 1.8kg Gross: 2.3kg
Nett: 4.0lb Gross: 5.1lb
* Note that this product is deeper than standard Redboxes
